Dora在 RISCV64架构中运行

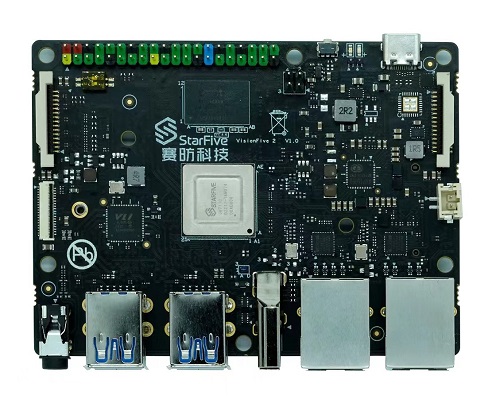

开发板使用的是昉·星光 2。VisionFive 2是全球首款集成3D GPU的高性能量产RISC-V单板计算机 。与上一代相比，VisionFive 2全面升级，在处理器工作频率、多媒体处理能力、可扩展性等方面都有显着提升。优越的性能和合理的价格使VisionFive 2成为有史以来性价比最高的RISC-V开发板。

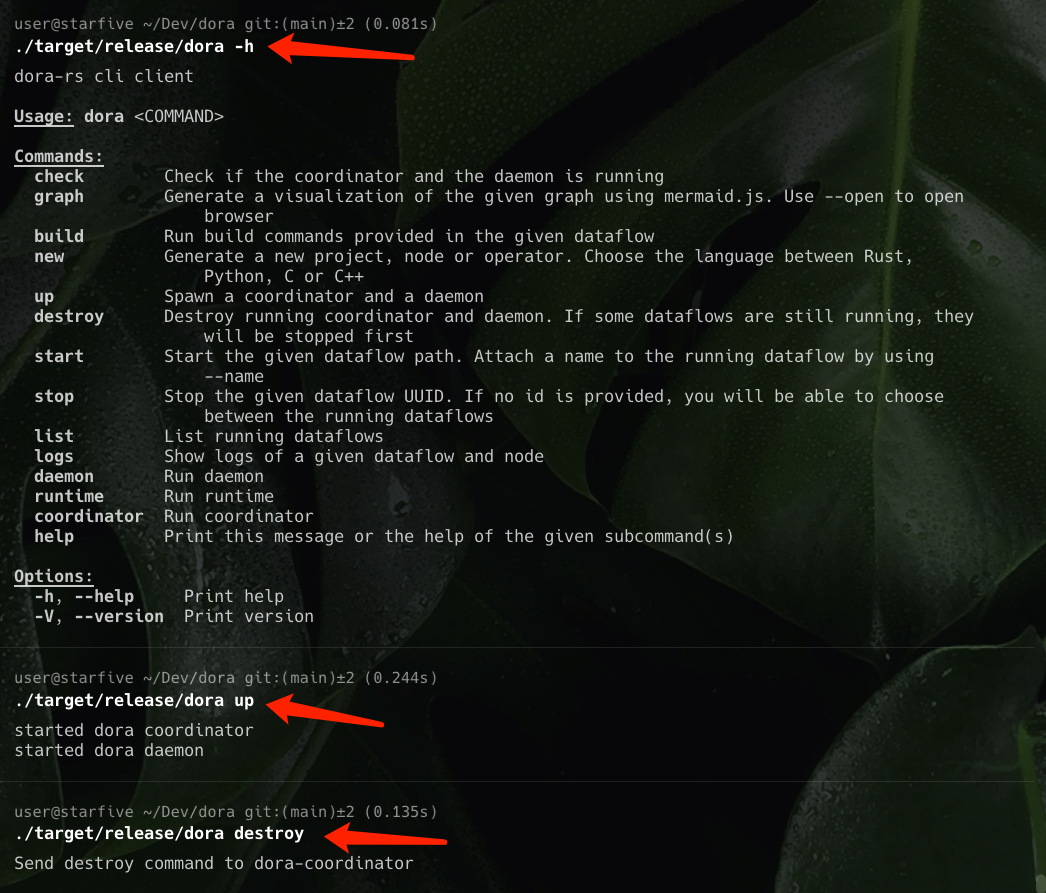

最终运行效果
系统调用分析
dora-rs cli client
Usage: dora <COMMAND>
Commands:
check Check if the coordinator and the daemon is running
graph Generate a visualization of the given graph using mermaid.js. Use --open to open
browser
build Run build commands provided in the given dataflow
new Generate a new project, node or operator. Choose the language between Rust,
Python, C or C++
up Spawn a coordinator and a daemon
destroy Destroy running coordinator and daemon. If some dataflows are still running, they
will be stopped first
start Start the given dataflow path. Attach a name to the running dataflow by using
--name
stop Stop the given dataflow UUID. If no id is provided, you will be able to choose
between the running dataflows
list List running dataflows
logs Show logs of a given dataflow and node
daemon Run daemon
runtime Run runtime
coordinator Run coordinator
help Print this message or the help of the given subcommand(s)
Options:
-h, --help Print help
-V, --version Print version
% time seconds usecs/call calls errors syscall
------ ----------- ----------- --------- --------- ----------------
45.91 0.014351 14351 1 write
22.24 0.006952 6952 1 execve
9.74 0.003043 253 12 mmap
4.92 0.001539 219 7 mprotect
4.76 0.001488 297 5 1 openat
3.04 0.000950 237 4 read
1.63 0.000511 510 1 1 faccessat
1.49 0.000467 116 4 fstat
1.38 0.000432 54 8 ioctl
1.01 0.000317 317 1 munmap
0.92 0.000288 96 3 sigaltstack
0.85 0.000267 89 3 brk
0.80 0.000250 62 4 close
0.48 0.000149 149 1 ppoll
0.24 0.000075 75 1 set_tid_address
0.22 0.000069 69 1 set_robust_list
0.22 0.000068 13 5 rt_sigaction
0.13 0.000041 41 1 1 getrandom
0.00 0.000000 0 1 prlimit64
------ ----------- ----------- --------- --------- ----------------
100.00 0.031257 488 64 3 total
execve("/bin/dora", ["/bin/dora"], 0x7ffff3ab2d90 /* 5 vars */) = 0
brk(NULL) = 0x55555a679000
faccessat(AT_FDCWD, "/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/lib/libz.so.1", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\0\0\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0644, st_size=84280, ...}) = 0
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7fff9ca57000
mmap(NULL, 82384, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9ca42000
mmap(0x7fff9ca55000, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x13000) = 0x7fff9ca55000
close(3) = 0
openat(AT_FDCWD, "/lib/libgcc_s.so.1", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\0\0\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=498168, ...}) = 0
mmap(NULL, 99120, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9ca29000
mmap(0x7fff9ca40000, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x16000) = 0x7fff9ca40000
close(3) = 0
openat(AT_FDCWD, "/lib/libm.so.6", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\0\0\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=730824, ...}) = 0
mmap(NULL, 516224, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9c9aa000
mmap(0x7fff9ca27000, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x7d000) = 0x7fff9ca27000
close(3) = 0
openat(AT_FDCWD, "/lib/libc.so.6", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\3\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\364\271\2\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=2010248, ...}) = 0
mmap(NULL, 1560760, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9c82c000
mmap(0x7fff9c998000, 20480, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x16c000) = 0x7fff9c998000
mmap(0x7fff9c99d000, 49336, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_ANONYMOUS, -1, 0) = 0x7fff9c99d000
close(3) = 0
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7fff9c82a000
set_tid_address(0x7fff9c82a510) = 46
set_robust_list(0x7fff9c82a520, 24) = 0
mprotect(0x7fff9c998000, 12288, PROT_READ) = 0
mprotect(0x7fff9ca27000, 4096, PROT_READ) = 0
mprotect(0x7fff9ca40000, 4096, PROT_READ) = 0
mprotect(0x7fff9ca55000, 4096, PROT_READ) = 0
mprotect(0x55555a56a000, 978944, PROT_READ) = 0
mprotect(0x7fff9ca7f000, 8192, PROT_READ) = 0
prlimit64(0, RLIMIT_STACK, NULL, {rlim_cur=8192*1024, rlim_max=RLIM64_INFINITY}) = 0
ppoll([{fd=0, events=0}, {fd=1, events=0}, {fd=2, events=0}], 3, {tv_sec=0, tv_nsec=0}, NULL, 0) = 0 (Timeout)
rt_sigaction(SIGPIPE, {sa_handler=SIG_IGN, sa_mask=[PIPE], sa_flags=SA_RESTART}, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGSEGV, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGSEGV, {sa_handler=0x555559faeef2, sa_mask=[], sa_flags=SA_ONSTACK|SA_SIGINFO}, NULL, 8) = 0
rt_sigaction(SIGBUS, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGBUS, {sa_handler=0x555559faeef2, sa_mask=[], sa_flags=SA_ONSTACK|SA_SIGINFO}, NULL, 8) = 0
sigaltstack(NULL, {ss_sp=NULL, ss_flags=SS_DISABLE, ss_size=0}) = 0
mmap(NULL, 12288, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS|MAP_STACK, -1, 0) = 0x7fff9c827000
mprotect(0x7fff9c827000, 4096, PROT_NONE) = 0
sigaltstack({ss_sp=0x7fff9c828000, ss_flags=0, ss_size=8192}, NULL) = 0
getrandom(0x7fff9c9a18c0, 8, GRND_NONBLOCK) = -1 EAGAIN (Resource temporarily unavailable)
brk(NULL) = 0x55555a679000
brk(0x55555a69a000) = 0x55555a69a000
openat(AT_FDCWD, "/proc/self/maps", O_RDONLY|O_CLOEXEC) = -1 ENOENT (No such file or directory)
ioctl(1, TIOCGWINSZ, {ws_row=0, ws_col=0, ws_xpixel=0, ws_ypixel=0}) = 0
ioctl(1, TIOCGWINSZ, {ws_row=0, ws_col=0, ws_xpixel=0, ws_ypixel=0}) = 0
ioctl(2, TIOCGWINSZ, {ws_row=0, ws_col=0, ws_xpixel=0, ws_ypixel=0}) = 0
ioctl(2, TIOCGWINSZ, {ws_row=0, ws_col=0, ws_xpixel=0, ws_ypixel=0}) = 0
ioctl(0, TIOCGWINSZ, {ws_row=0, ws_col=0, ws_xpixel=0, ws_ypixel=0}) = 0
ioctl(0, TIOCGWINSZ, {ws_row=0, ws_col=0, ws_xpixel=0, ws_ypixel=0}) = 0
ioctl(2, TCGETS, {c_iflag=ICRNL|IXON, c_oflag=NL0|CR0|TAB0|BS0|VT0|FF0|OPOST|ONLCR, c_cflag=B9600|CS8|CREAD|HUPCL|CLOCAL, c_lflag=ISIG|ICANON|ECHO|ECHOE|ECHOK|IEXTEN|ECHOCTL|ECHOKE, ...}) = 0
ioctl(2, TCGETS, {c_iflag=ICRNL|IXON, c_oflag=NL0|CR0|TAB0|BS0|VT0|FF0|OPOST|ONLCR, c_cflag=B9600|CS8|CREAD|HUPCL|CLOCAL, c_lflag=ISIG|ICANON|ECHO|ECHOE|ECHOK|IEXTEN|ECHOCTL|ECHOKE, ...}) = 0
write(2, "dora-rs cli client\n\n\33[1m\33[4mUsag"..., 1388dora-rs cli client
Usage: dora <COMMAND>
Commands:
check Check if the coordinator and the daemon is running
graph Generate a visualization of the given graph using mermaid.js. Use --open to open
browser
build Run build commands provided in the given dataflow
new Generate a new project, node or operator. Choose the language between Rust,
Python, C or C++
up Spawn a coordinator and a daemon
destroy Destroy running coordinator and daemon. If some dataflows are still running, they
will be stopped first
start Start the given dataflow path. Attach a name to the running dataflow by using
--name
stop Stop the given dataflow UUID. If no id is provided, you will be able to choose
between the running dataflows
list List running dataflows
logs Show logs of a given dataflow and node
daemon Run daemon
runtime Run runtime
coordinator Run coordinator
help Print this message or the help of the given subcommand(s)
Options:
-h, --help Print help
-V, --version Print version
) = 1388
sigaltstack({ss_sp=NULL, ss_flags=SS_DISABLE, ss_size=8192}, NULL) = 0
munmap(0x7fff9c827000, 12288) = 0
exit_group(2)
dora up
failed to start dora-coordinator: failed to get current executable path: no /proc/self/exe available. Is /proc mounted?
% time seconds usecs/call calls errors syscall
------ ----------- ----------- --------- --------- ----------------
25.96 0.005635 5635 1 execve
13.50 0.002930 244 12 mmap
10.81 0.002347 469 5 close
9.69 0.002104 350 6 write
6.46 0.001401 200 7 mprotect
6.33 0.001373 274 5 1 openat
5.42 0.001176 1176 1 socket
5.13 0.001114 1114 1 1 connect
4.51 0.000978 244 4 read
2.63 0.000571 142 4 fstat
2.56 0.000555 277 2 2 statx
2.28 0.000494 247 2 1 getrandom
0.81 0.000175 175 1 ppoll
0.78 0.000170 34 5 rt_sigaction
0.65 0.000140 140 1 1 faccessat
0.59 0.000127 127 1 1 readlinkat
0.48 0.000105 35 3 brk
0.42 0.000091 30 3 sigaltstack
0.38 0.000083 83 1 prlimit64
0.32 0.000069 69 1 set_tid_address
0.30 0.000065 65 1 set_robust_list
0.00 0.000000 0 1 munmap
------ ----------- ----------- --------- --------- ----------------
100.00 0.021703 319 68 7 total
execve("/bin/dora", ["/bin/dora", "up"], 0x7fffe7866d88 /* 5 vars */) = 0
brk(NULL) = 0x555591f60000
faccessat(AT_FDCWD, "/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/lib/libz.so.1", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\0\0\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0644, st_size=84280, ...}) = 0
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7fff9bcb8000
mmap(NULL, 82384, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9bca3000
mmap(0x7fff9bcb6000, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x13000) = 0x7fff9bcb6000
close(3) = 0
openat(AT_FDCWD, "/lib/libgcc_s.so.1", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\0\0\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=498168, ...}) = 0
mmap(NULL, 99120, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9bc8a000
mmap(0x7fff9bca1000, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x16000) = 0x7fff9bca1000
close(3) = 0
openat(AT_FDCWD, "/lib/libm.so.6", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\0\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\0\0\0\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=730824, ...}) = 0
mmap(NULL, 516224, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9bc0b000
mmap(0x7fff9bc88000, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x7d000) = 0x7fff9bc88000
close(3) = 0
openat(AT_FDCWD, "/lib/libc.so.6", O_RDONLY|O_CLOEXEC) = 3
read(3, "\177ELF\2\1\1\3\0\0\0\0\0\0\0\0\3\0\363\0\1\0\0\0\364\271\2\0\0\0\0\0"..., 832) = 832
fstat(3, {st_mode=S_IFREG|0755, st_size=2010248, ...}) = 0
mmap(NULL, 1560760, PROT_READ|PROT_EXEC, MAP_PRIVATE|MAP_DENYWRITE, 3, 0) = 0x7fff9ba8d000
mmap(0x7fff9bbf9000, 20480, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_DENYWRITE, 3, 0x16c000) = 0x7fff9bbf9000
mmap(0x7fff9bbfe000, 49336, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_FIXED|MAP_ANONYMOUS, -1, 0) = 0x7fff9bbfe000
close(3) = 0
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7fff9ba8b000
set_tid_address(0x7fff9ba8b510) = 59
set_robust_list(0x7fff9ba8b520, 24) = 0
mprotect(0x7fff9bbf9000, 12288, PROT_READ) = 0
mprotect(0x7fff9bc88000, 4096, PROT_READ) = 0
mprotect(0x7fff9bca1000, 4096, PROT_READ) = 0
mprotect(0x7fff9bcb6000, 4096, PROT_READ) = 0
mprotect(0x555591e51000, 978944, PROT_READ) = 0
mprotect(0x7fff9bce0000, 8192, PROT_READ) = 0
prlimit64(0, RLIMIT_STACK, NULL, {rlim_cur=8192*1024, rlim_max=RLIM64_INFINITY}) = 0
ppoll([{fd=0, events=0}, {fd=1, events=0}, {fd=2, events=0}], 3, {tv_sec=0, tv_nsec=0}, NULL, 0) = 0 (Timeout)
rt_sigaction(SIGPIPE, {sa_handler=SIG_IGN, sa_mask=[PIPE], sa_flags=SA_RESTART}, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGSEGV, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGSEGV, {sa_handler=0x555591895ef2, sa_mask=[], sa_flags=SA_ONSTACK|SA_SIGINFO}, NULL, 8) = 0
rt_sigaction(SIGBUS, NULL, {sa_handler=SIG_DFL, sa_mask=[], sa_flags=0}, 8) = 0
rt_sigaction(SIGBUS, {sa_handler=0x555591895ef2, sa_mask=[], sa_flags=SA_ONSTACK|SA_SIGINFO}, NULL, 8) = 0
sigaltstack(NULL, {ss_sp=NULL, ss_flags=SS_DISABLE, ss_size=0}) = 0
mmap(NULL, 12288, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS|MAP_STACK, -1, 0) = 0x7fff9ba88000
mprotect(0x7fff9ba88000, 4096, PROT_NONE) = 0
sigaltstack({ss_sp=0x7fff9ba89000, ss_flags=0, ss_size=8192}, NULL) = 0
getrandom(0x7fff9bc028c0, 8, GRND_NONBLOCK) = -1 EAGAIN (Resource temporarily unavailable)
brk(NULL) = 0x555591f60000
brk(0x555591f81000) = 0x555591f81000
openat(AT_FDCWD, "/proc/self/maps", O_RDONLY|O_CLOEXEC) = -1 ENOENT (No such file or directory)
getrandom("\x22\x03\xa1\x57\xeb\xb5\x16\xf1\x85\x07\x33\xf7\x29\xa1\x85\x0e", 16, GRND_INSECURE) = 16
statx(AT_FDCWD, "dora-config.yml", AT_STATX_SYNC_AS_STAT, STATX_ALL, 0x7fffd9dde158) = -1 ENOENT (No such file or directory)
statx(0, NULL, AT_STATX_SYNC_AS_STAT, STATX_ALL, NULL) = -1 EFAULT (Bad address)
socket(AF_INET, SOCK_STREAM|SOCK_CLOEXEC, IPPROTO_IP) = 3
connect(3, {sa_family=AF_INET, sin_port=htons(6012), sin_addr=inet_addr("127.0.0.1")}, 16) = -1 ENETUNREACH (Network is unreachable)
close(3) = 0
readlinkat(AT_FDCWD, "/proc/self/exe", 0x555591f66ce0, 256) = -1 ENOENT (No such file or directory)
write(2, "failed to start dora-coordinator", 32failed to start dora-coordinator) = 32
write(2, ": ", 2: ) = 2
write(2, "failed to get current executable"..., 37failed to get current executable path) = 37
write(2, ": ", 2: ) = 2
write(2, "no /proc/self/exe available. Is "..., 46no /proc/self/exe available. Is /proc mounted?) = 46
write(2, "\n", 1
) = 1
sigaltstack({ss_sp=NULL, ss_flags=SS_DISABLE, ss_size=8192}, NULL) = 0
munmap(0x7fff9ba88000, 12288) = 0
exit_group(1) = ?
+++ exited with 1 +++
